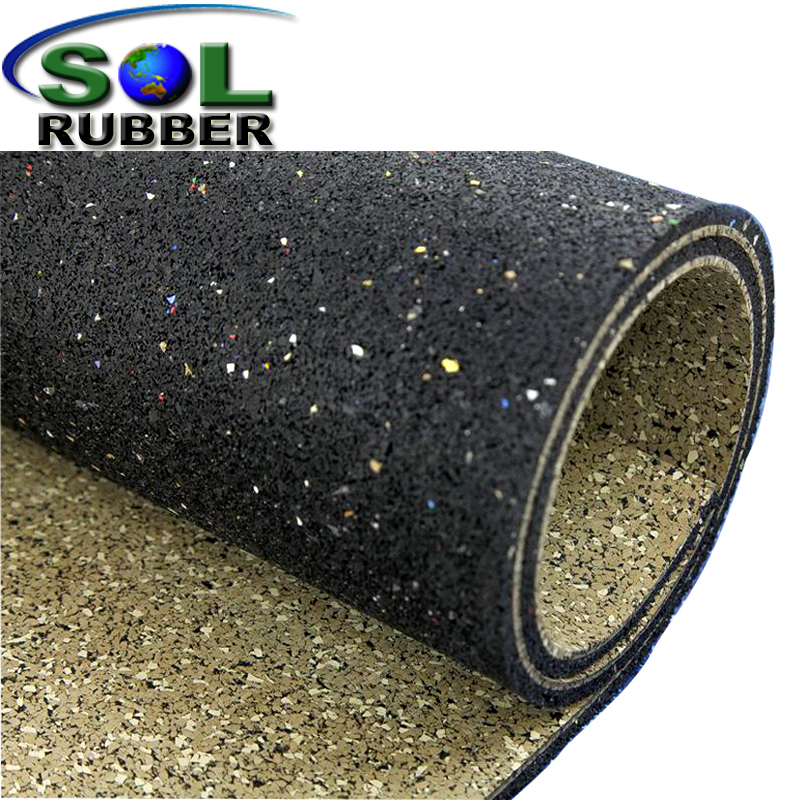

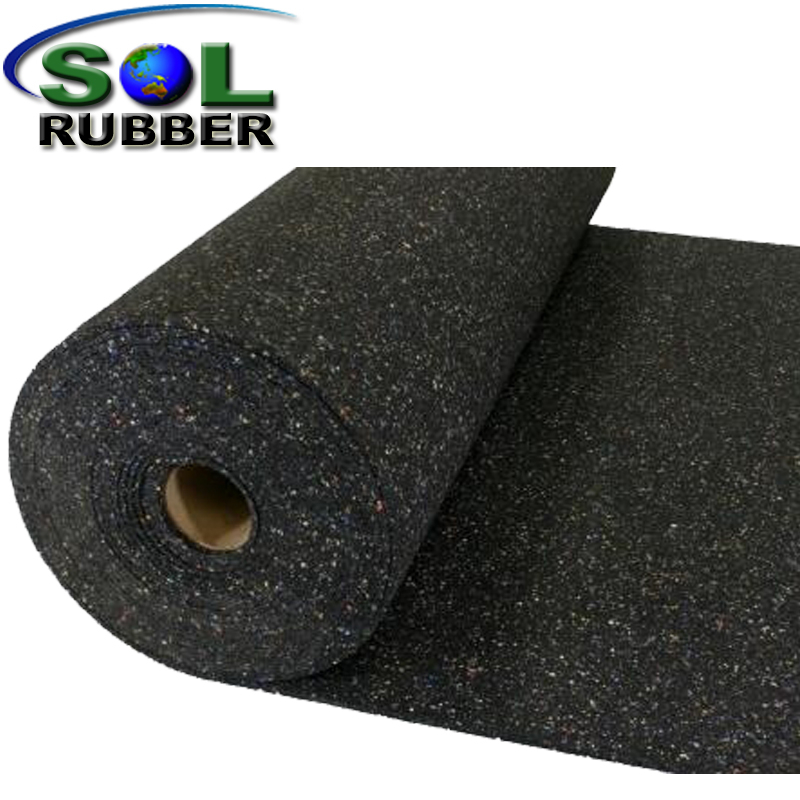

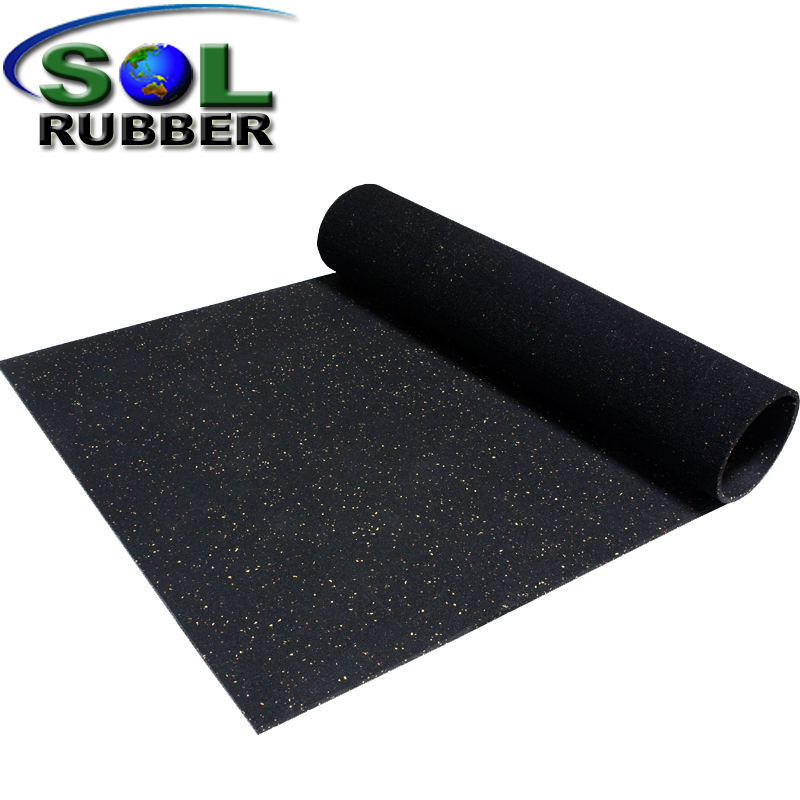

Acoustic underlayer

SGS certificated Acoustic Underlayer, sound insulation floor, Vibration insulation sheet, Sound absorb mat, Impact reduct mat, sport flooring mat ....

Quantity:
  • SOL-ATS
  • SOL RUBBER
  • 40169100

SGS certificated Acoustic Underlayer, sound insulation floor, Vibration insulation sheet, Sound absorb mat, Impact reduct mat, sport flooring mat
01 Acoustic underlayer
Specification:
Length:1m-300m
Width:0.5m-1.25m
Thickness: 2mm-20mm

Material:
SBR rubber and polyurethane binder   (RR)
SBR rubber ,foam ,cork and polyurethane binder  (RFC)
SBR rubber ,foam and polyurethane binder  (RF)
SBR rubber ,cork and polyurethane binder  (RC)
SBR Foam ,cork and polyurethane binder  (FC)
SBR Foam and polyurethane binder  (FF)
PU foam, cork and polyurethane binder  (PUC)
PVC ,fiber roll sheet
 05 Rubber with cork
Color:  black ,cork ,mixed colored ,etc.
Packing : Kraft Bag, Pallet, Carton, Special Packing, etc.
Special Performance: Fire resistance, sound insulation,vibration proof
Special offer: Sound insulation design freely.

Benefits
·  Excellent acoustic properties
·  Can be used for very light loads, achieving high damping ratios to low natural frequencies.
·  Available different densities
·  Low compression ratio, combined with excellent resilience.
·  Individual form designs available upon request.
·  Excellent recovery properties
·  Stable dimension,seamless
·  Environmental friendly,non-toxic
·  Easy installation
·  100% recyclable
 03
Applications:
Can be used in the area of impact Sound insulation and vibration proof. Such as wood flooring, bamboo flooring, timber floor, carpet ,ceramic and other underlay flooring materials.

Test result :
The weighted impact sound pressure level LnTw= 60 dB,
Reduction in impact sound pressure level LW=17dB
 04 EPDM sound insulation
Certifications: SGS, ROHS, TUV, Fire Resistance, CE,etc.
